3.5″ Single Board Computers
Three of fifteen options shown below. Contact us for more information on other versions.
AECX-ADL0 – Intel® Alder Lake-N Series based 3.5″Embedded board support Core-i3®Pentium®/ Celeron® /Atom®processors with 2DP(Co-lay HDMI)/1LVDS(eDP)/ 1SATA III/ 1M.2 B+M-Key/1mini PCIe /6COM, 6USB, Dual 2.5GbE LAN
- Intel® Alder Lake-N Atom®/ Pentium®/ Celeron® series Embedded Board
- One 260-pin SO-DIMM up to 32GB DDR4 3200MT/s SDRAM
- Multi-Display : 2 DP (HDMI) / 1 LVDS(eDP) w/Triple Display
- Two Intel® 2.5 Gigabit Ethernet port
- 1 x Mini PCIe slot Full Size ( PCIe x1 / USB 2.0)
- 1 x M.2 B+M-key 3042/2242 slot (w/ nSIM Socket,PCIe x2 / SATA, NVMe)
- 1 SATAIII, 6 COM, 4 USB3.2 and 2 USB2.0
- Supports 4K/2K Resolution Display
- DC-IN 9V ~ 36V, EuP/ErP 2013 Read
AECX-TGL0 – Intel® Tiger Lake-UP3 Series based 3.5″ Embedded Board supportsIntel® 11th Gen Core™ i7/i5/i3/Celeron® Processors with Dual HDMI/DP, DuaL LVDS, SATAIII, 4COM, 8USB,Dual Intel® GbE LAN
- Intel® 11th Generation Core™ i7/i5/i3/Celeron® series processor on board
- Two DDR4 SO-DIMM
- Multi-Display: 2 x HDMI (option 2 x DP)/ 2 x LVDS
- Two Intel® Gigabit Ethernet ports
- 1 x M.2 M-key 2280; 1 x M.2 B+M-key 3042/2242; 1 x M.2 E-key 2230
- 1 x SATA III, 4 x COM, 4 x USB 3.1 and 4 x USB 2.0
- Supports 4K/2K resolution display
- DC-in 12V or 19 ~24V

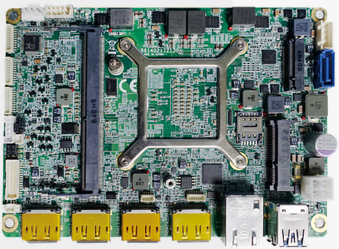

AECX-R2K1 – AMD® Ryzen™ Embedded R2000 Series APU based 3.5″ Embedded Board with 4 DP (HDMI)/LVDS, SATA III, COM, 5 USB, Intel® GbE LAN
- AMD® Ryzen™ Embedded R2000 series APU onboard
- High Performance “Zen” Core CPU + “VEGA” Graphics GPU
- Two 260-pin SO-DIMMs up to 32GB DDR4 3200MT/s SDRAM
- Multi-Display : 4 DP (HDMI) / LVDS (optional)
- One Intel® Gigabit Ethernet port
- 1 Mini PCIe (full-size, w/ Nano-SIM), 1 M.2 M-key 2280 (SSD) expansion slots
- 1 SATA III, 2 USB 3.1 and 3 USB 2.0 ports
- Supports 4K/2K Resolution Display
- DC-IN 12V or 19V ~ 24V, EuP/ErP 2013 Ready
